Loading robot

The adaptive carriage loading robot is compatible with most vehicles

The loading method of our loading robot is that the goods are first queued up on the platform for stocking, and then the chain plate part of the platform is pushed into the carriage as a whole, and then the chain plate is pulled out to complete the loading. The loading robot can deform in width, depth, and height directions according to the position of the carriage on the ground. It is an adaptive carriage loading robot and can be compatible with most vehicles on the market.

  • 13.5 m

    Journey

  • 2.25~2.5 m

    Loading width

  • 30 t

    Maximum load

  • 1.15~1.65 m

    Loading height

  • Automatic car search function

    Fully automatic height and width adjustment without manual labor, the chain drives the push plate to realize the platform's push function.

  • Adaptive settling function

    Adaptive settlement following vehicle body height during loading

  • Efficient loading

    Enter the carriage in 2 minutes

  • High compatibility

    Loading of bulk, bagged, carton, special-shaped, pallet, ton bag and other goods

Maximum load 30T
Transfer speed 15m/min
Conveying acceleration 0.2m/s2
Journey 13.5m
Lifting stroke 400mm
Translational travel 500mm
Equipment adjustment angle ±1°
Loading width 2250~2500mm
Loading height 1150~1650mm
Loading length 13.5m

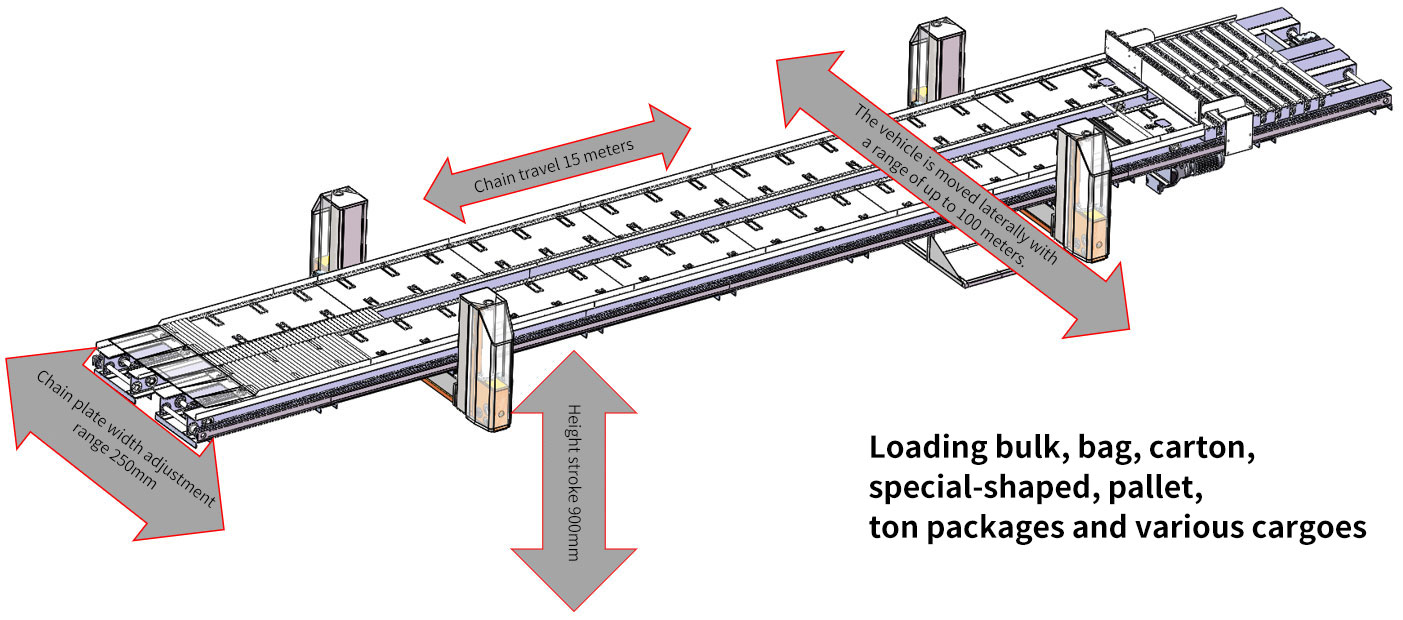

A loading robot that can transform in 4 directions according to the carriage

Flexible adjustment to various sizes
Trucks and loading robots adopt non-contact alignment

Loading robot
